Package Sewage Treatment Plant/MBR, MBBR

The PACT package sewage treatment systems have been designed for using in areas not connected to a central sewerage system, such as Hotel, Airport, Mining, Cantonment, etc. To meet various request PACT provides three different type of packages:

• Conventional biological treatment package
• Membrane Biological Reactor (MBR) package (CE Certification)
• Moving Bed Bio-film Reactor (MBBR) package

Projects Photos

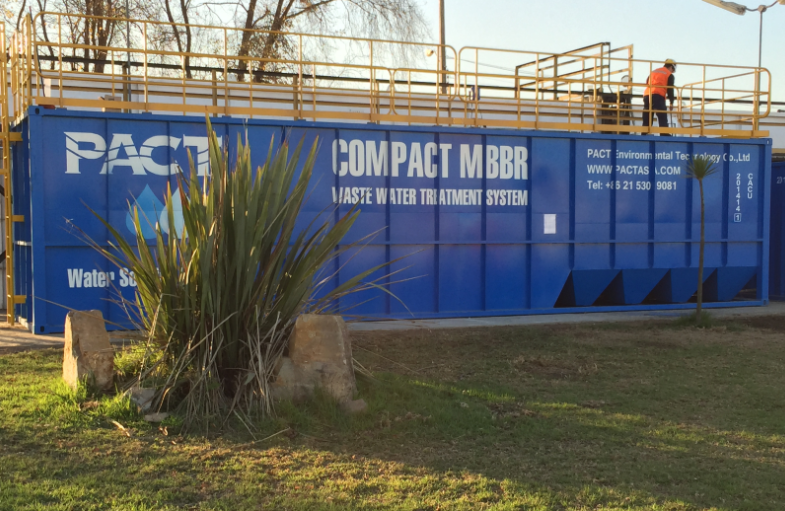

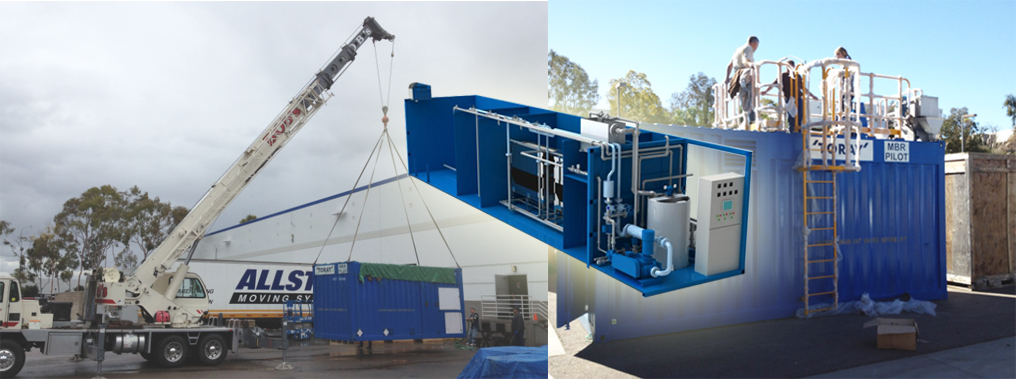

                                                             COMPACT MBR                                                                        COMPACT MBBR

Standard Components (common to the three Series)

• Tanks for aeration, settling and chlorine contact
• Roots type blowers complete with motor, silencer, flexible fittings and baseplate
• Air-piping and fine-bubble diffusers. Diffusers are removable for easy maintenance
• Sludge air-lift pump (recycling and waste)
• Disinfection equipment
• Interconnecting piping and fittings
• Electric control panel
• Packaged magnesium anodes for cathodic protection of steel tanks
• Ladders and walkway for above grade tanks

Optional

• Submersible sump pumps with guide rail, floats and control panel
• Tanks for sludge holding and equalization
• Manual or mechanical inlet screen (vertical or cylindrical)
• Blower enclosure for outdoor installation
• Settling tank hopper/scraper complete with effluent scum baffle and weir channel.( only for conventional and MBBR)
• Settling tank surface scum-skimmer
• Foam control pump, piping and jets
• Metering pumps for pH adjustment and nutrient addition
• Tertiary treatment filters of graded sand or multi-media
• Moving bed biofilm ( only for MBBR)
• UF membrane unit ( only for MBR)
• Sludge dewatering device (centrifuge, filter press, belt press)
• Instrumentation for in-line pH, dissolved oxygen, COD and effluent magnetic flow meter
• Marine standards for offshore installations complying to IMO regulations

PACT Document Download

PACT MBR & MBBR Catalogue
